The Hv3 locomotive

Drawings � Tapio Keränen, Finland. Published here with permission.

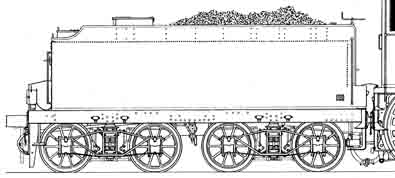

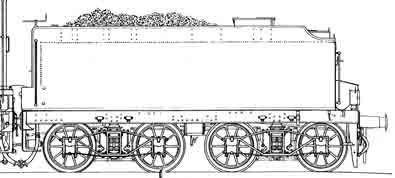

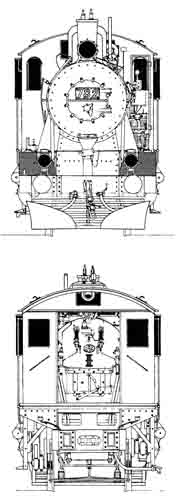

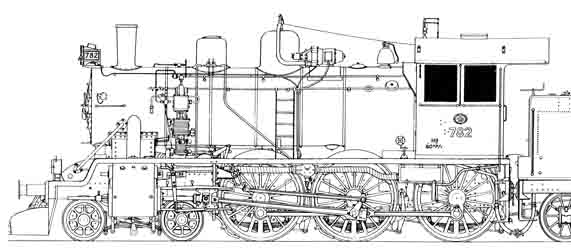

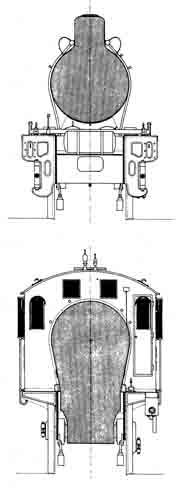

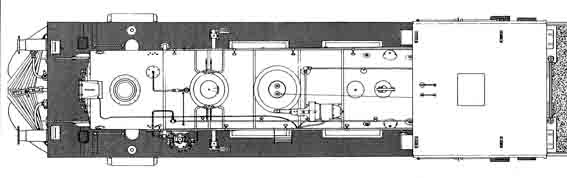

These drawings are reduced to fit the page. A larger version is obtained by clicking an image. At 100 dpi, it will be in 1:8 (1.5") scale.
